Firetrace®
Automatic Fire Suppression System
Intelligent protection that works even without electricity

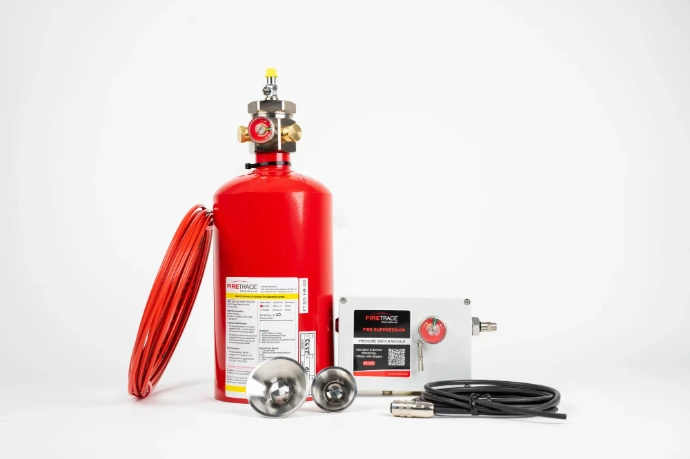

What is Firetrace?
Firetrace is a revolutionary automatic fire suppression system designed for enclosed spaces and equipment. What makes it unique is its fully pneumatic operation – it requires no electricity, no batteries, and no external power to detect and suppress fires.
The Innovation
Traditional fire suppression systems depend on electrical power, smoke detectors, control panels, and manual activation. Firetrace needs none of these. It's a self-contained, pressure-driven system that activates automatically when it detects heat or flame – even during complete power outages
How Firetrace Works
The Detection Tube
At the heart of Firetrace is a proprietary pressurized detection tube installed inside the protected enclosure:
The tube acts as both detector and actuator
Filled with pressurized gas (around 15 bar)
Heat-sensitive polymer that ruptures at 120°C (248°F) or upon flame contact
Rupture occurs at the point closest to the fire
Instant Activation
When the tube ruptures:
Pressure drop detected immediately
Main valve opens (pneumatic/mechanical)
Suppression agent releases
Fire extinguished in seconds
Total response time: 3–10 seconds from detection to suppression
System Types

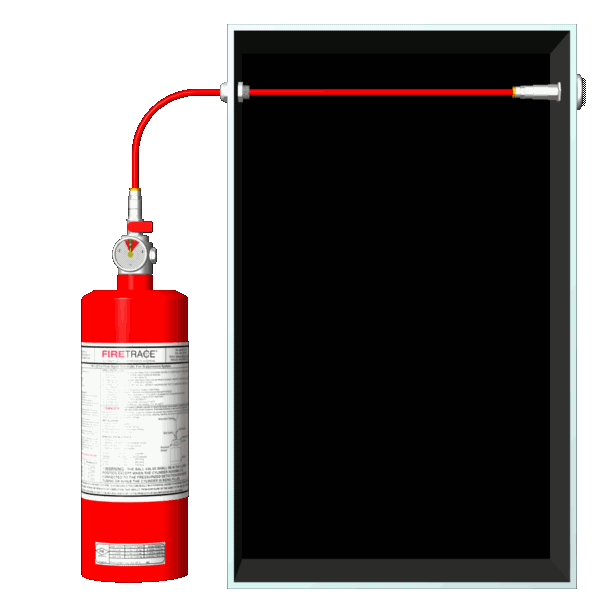

Direct Release Systems

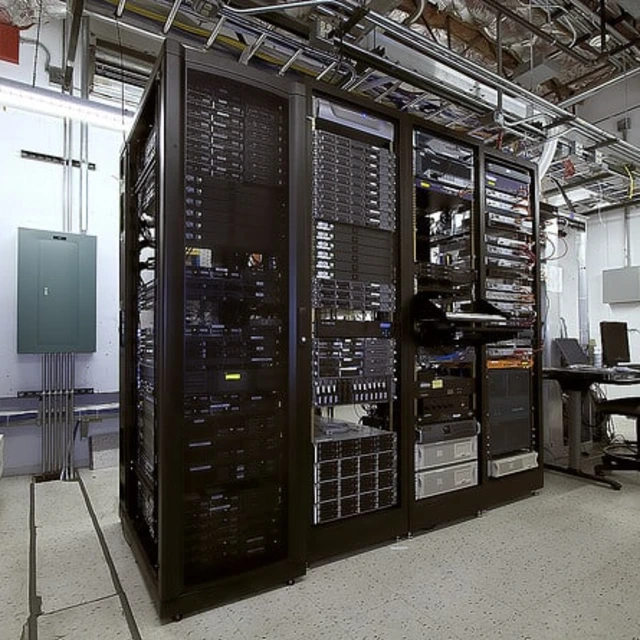

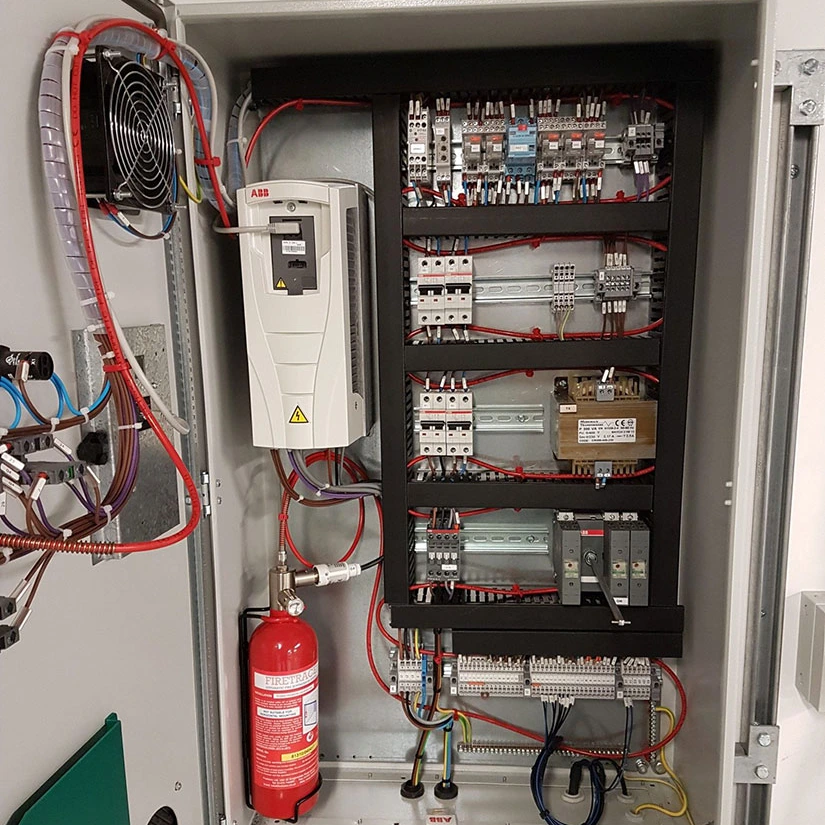

How it works: In a direct release system, the suppressant will come through the hole in the tube directly.Common applications: Direct release systems are recommended for electrical panel and server rack protection.
Key benefits: The direct release system works well for protection of electrical hazards, because it does not rely on any metal components installed within an electrical enclosure. Metal components, like nozzles, can cause electrical arc faults, which actually increase your fire risk. Because direct release systems rely entirely on the tubing, a plastic material, fire risk is reduced.

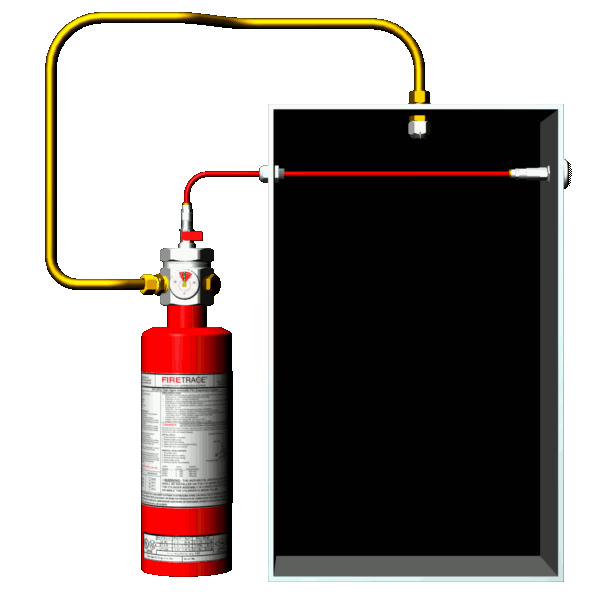

Indirect Release Systems

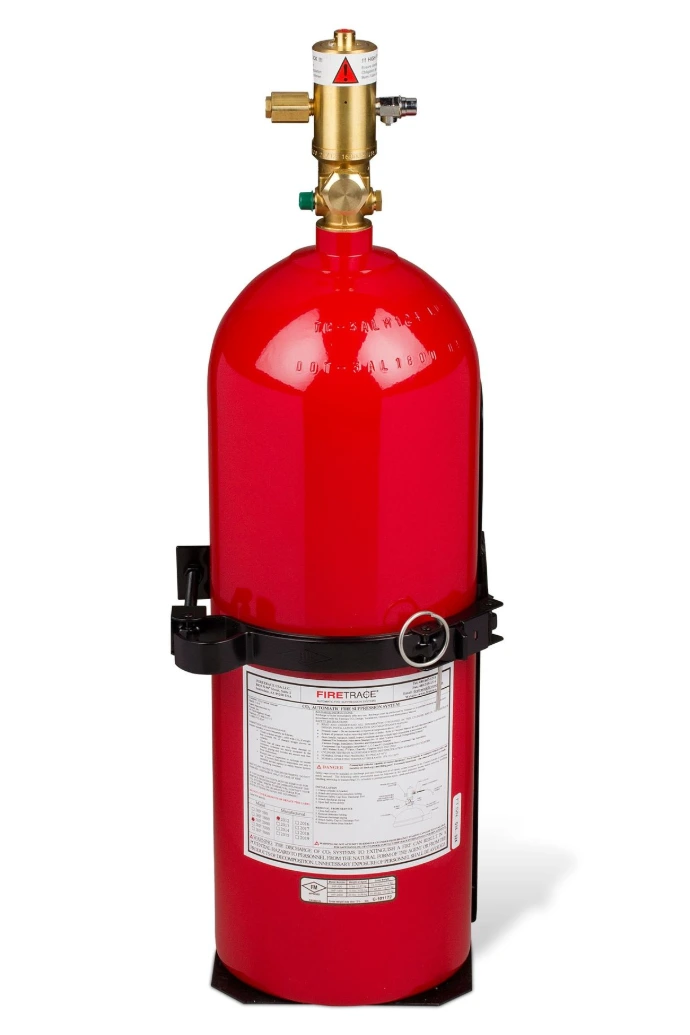

How it works: An indirect release is when the tube acts as a detection device and, through the pressure change, tells the system to discharge the agent through other pipes and nozzles.

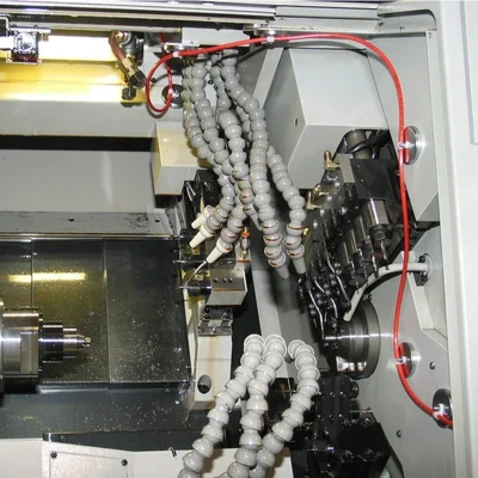

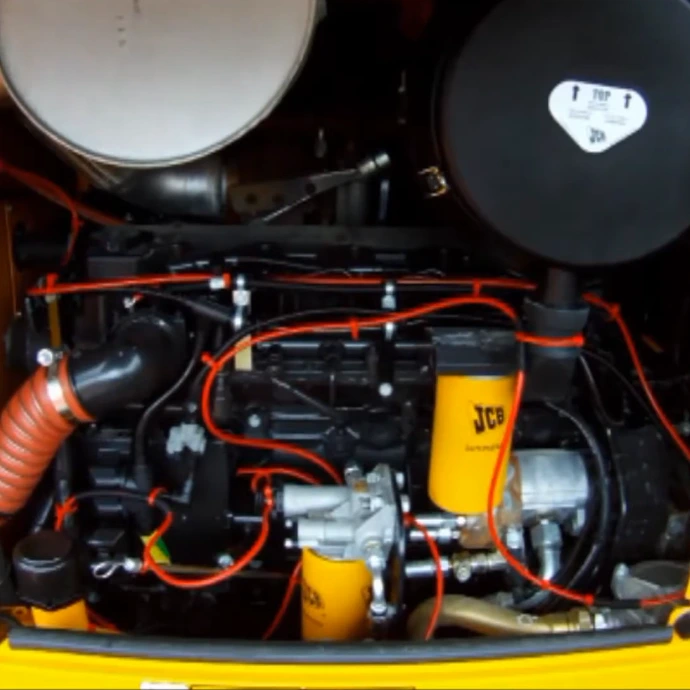

Common applications: Indirect release systems are commonly used for vehicles and in CNC machines.
Key benefits: Firetrace Indirect Release Systems have been independently tested and evaluated by the leading product performance testing agencies. They are UL Listed and FM Approved. Third party testing ensures that products consistently perform as expected and can tolerate environmental challenges like temperature change. Local and national fire codes, including those published by the National Fire Protection Association (NFPA) often recommend UL or FM approved systems.
Suppression Agents
Firetrace supports multiple extinguishing agents depending on the fire risk:
01

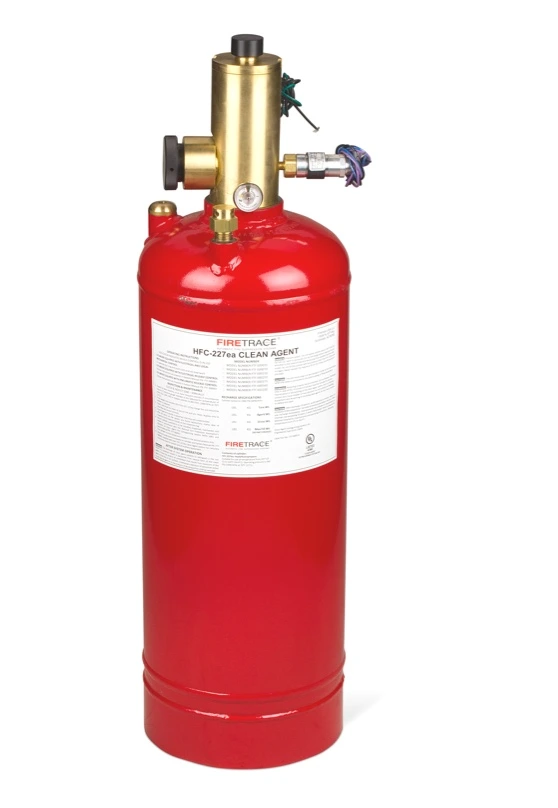

Clean Agents (FK-5-1-12 / Novec 1230)
Type: Fluorinated ketone
Residue: Zero – evaporates completely
Electrical safety: 100% safe for electronics
Environmental: Low GWP, zero ODP
Best for: Data centers, telecom rooms, control rooms, museums
02
CO₂ (Carbon Dioxide)
Type: Inert gas
Mechanism: Oxygen displacement
Effectiveness: Excellent for deep-seated fires
Best for: Engine rooms, generators, unmanned spaces
Caution: Not for occupied areas
03
Dry Chemical (ABC / BC Powder)
Type: Mono-ammonium phosphate or sodium bicarbonate
Mechanism: Chain reaction interruption
Effectiveness: Excellent for flammable liquid fires
Best for: Industrial machinery, paint booths, kitchens
Note: Requires cleanup after discharge
04
Wet Chemical (Class K)
Type: Potassium-based solution
Mechanism: Saponification (creates foam barrier)
Best for: Commercial kitchen equipment, deep fryers
Special: Prevents re-ignition
Why Firetrace?
Works Without Electricity
Power outage? Firetrace keeps working. No dependency on electrical systems, no backup batteries required, mechanical/pneumatic operation only. Perfect for remote locations.
Pinpoint Fire Detection
Suppresses exactly where the fire starts. Tube ruptures at hottest point, agent released directly at fire source, minimal agent waste, maximum effectiveness.
Simple & Reliable
Less complexity means less failure. No control panels, no wiring, no programming. Mechanical simplicity equals high reliability.
Cost-Effective
Lower installation and maintenance costs. Quick installation (hours, not days), no electrical work required, minimal maintenance, long service life (10+ years), rechargeable cylinders.
Easy Maintenance
System status visible at a glance. Pressure gauge shows system ready, annual visual inspection sufficient, on-site recharge available, no software updates needed.
International Certifications
Firetrace holds approvals from the world's most demanding certification bodies:
UL Listed (USA) – Underwriters Laboratories
ULC Listed (Canada) – Underwriters Laboratories of Canada
FM Approved (Global) – Factory Mutual
CE Marked (Europe) – European Conformity
VdS Approved (Germany)
LPCB Approved (UK) – Loss Prevention Certification Board
Certified in 20+ countries worldwide
Compliance with: NFPA Standards (USA), EN Standards (Europe), Local Fire Codes worldwide
Proven Applications
Industrial Machinery

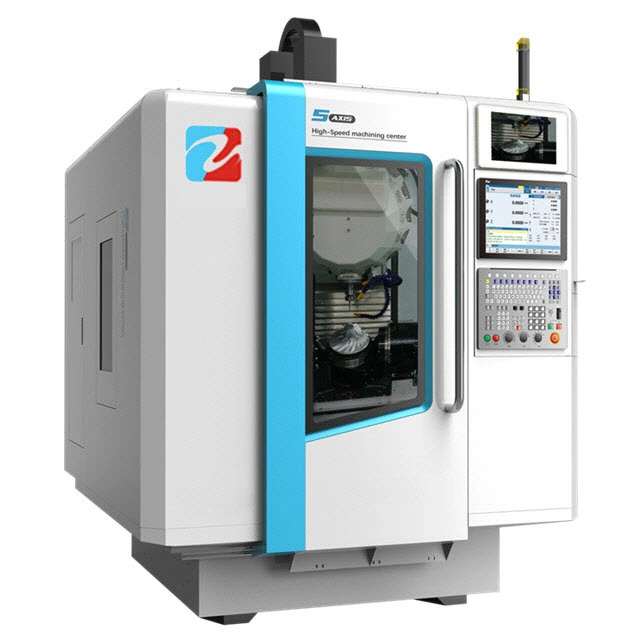

CNC Machines & Machining Centers
EDM (Electrical Discharge Machining)
Electrical Infrastructure

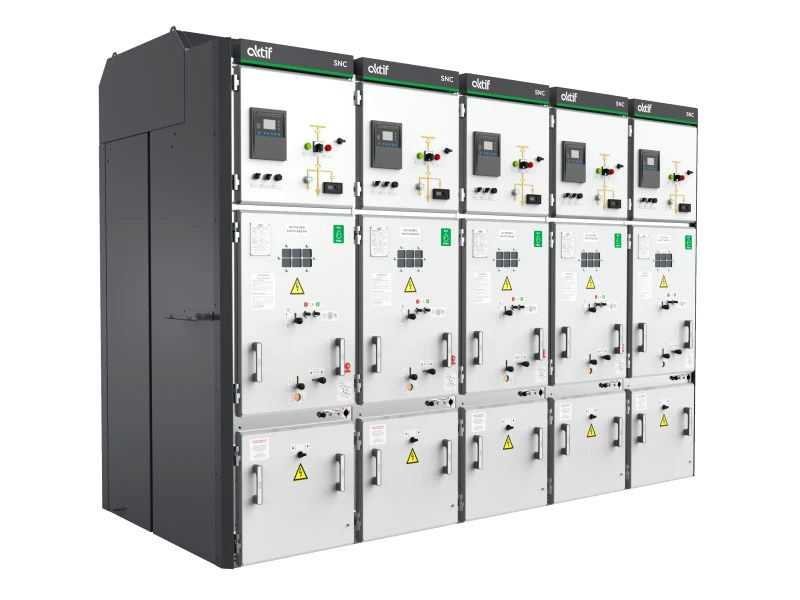

Switchgear & Control Panels
UPS & Battery Rooms
Transformer Enclosures
Mobile Equipment

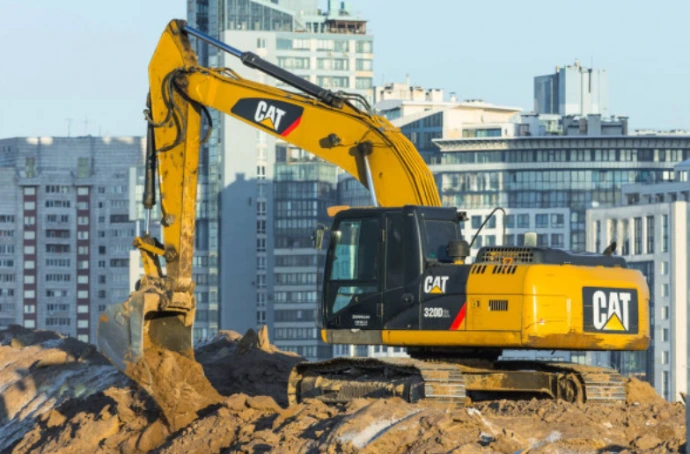

Heavy Machinery
Public Transportation

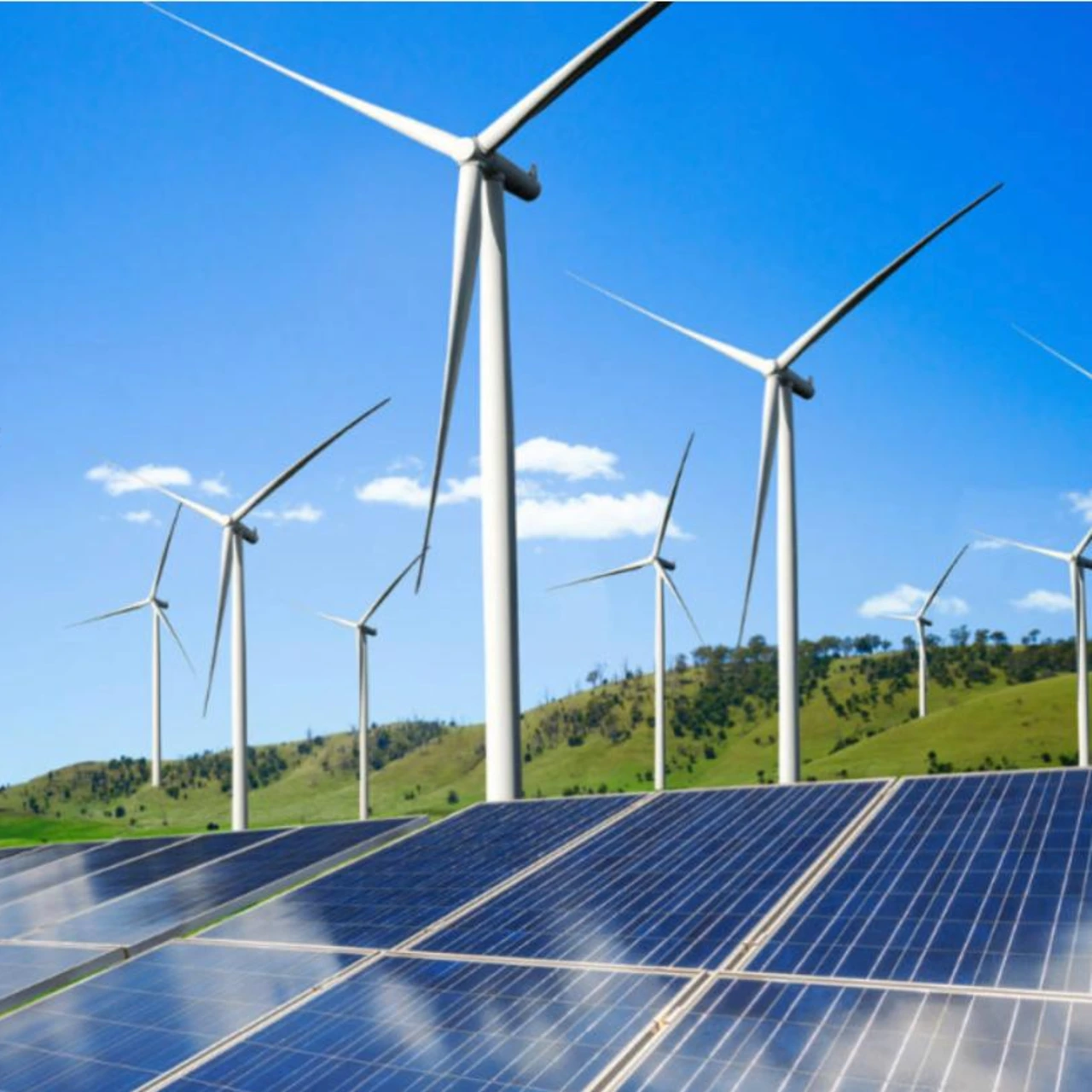

Renewable Energy

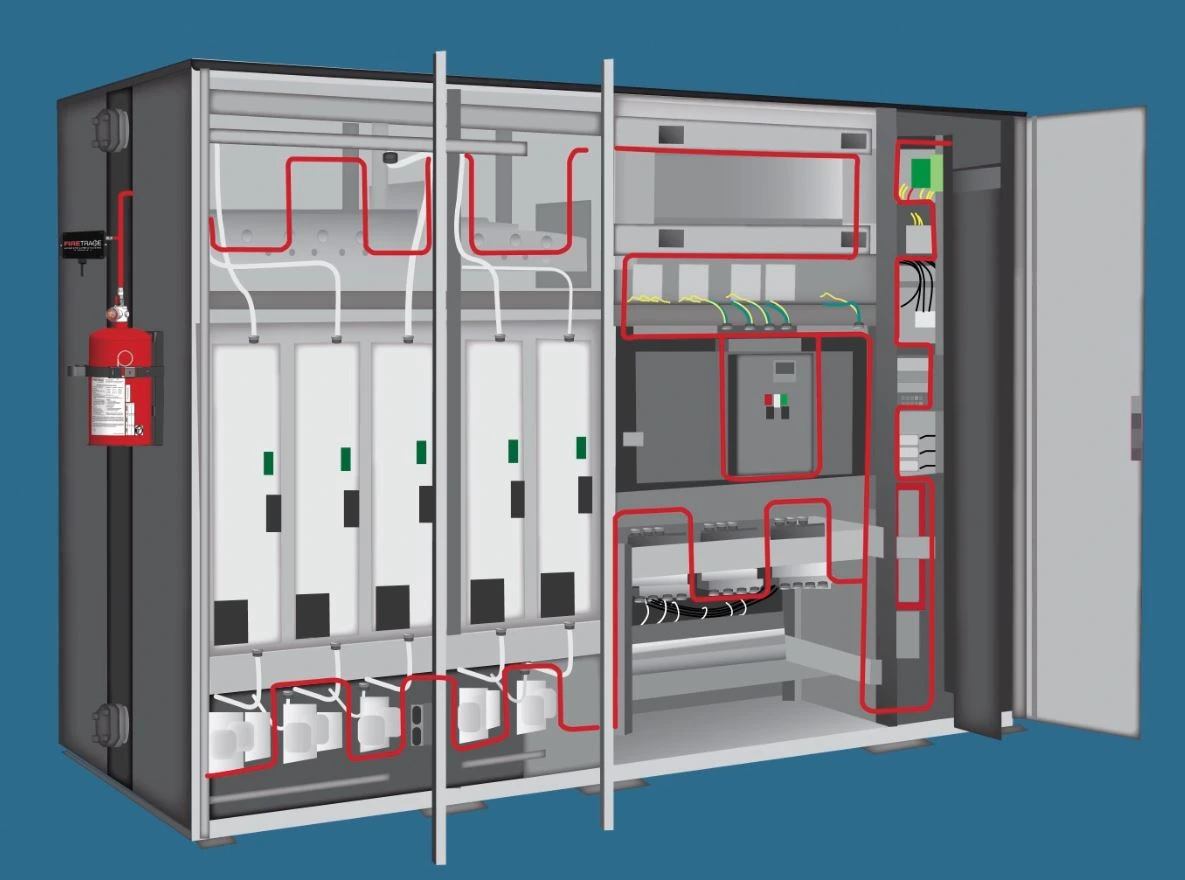

Wind Turbines

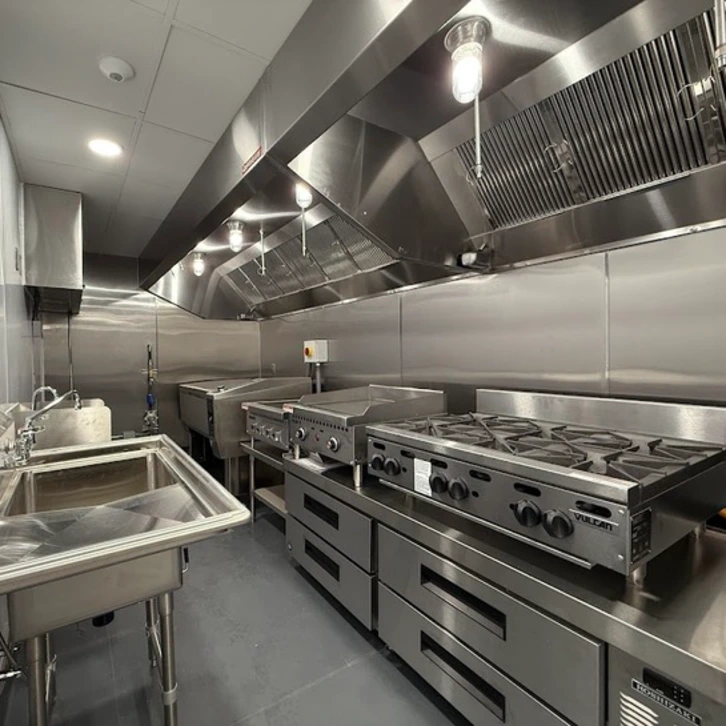

Commercial Kitchens
Restaurant Equipment
Major Projects by SAMS

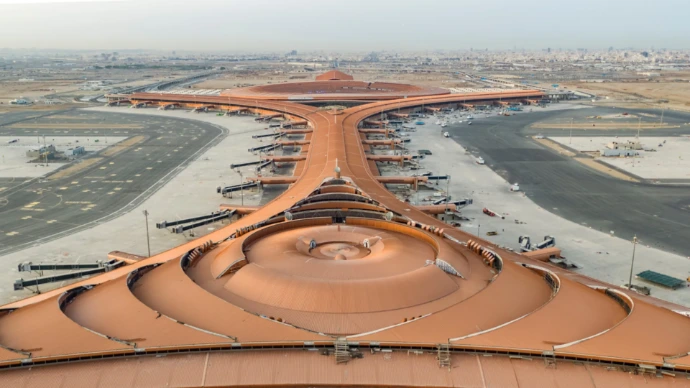

King Abdulaziz International Airport, Jeddah
Client: General Authority of Civil Aviation (GACA)
Location: Jeddah, Saudi Arabia
System: Firetrace Automatic Suppression
Scope: High-risk areas throughout the airport
Services: Supply, Installation, Commissioning, Maintenance
Riyadh Metro – All Stations
Client: Arriyadh Development Authority (ADA)
Location: Riyadh, Saudi Arabia
System: Firetrace Systems
Scope: Critical equipment rooms across all metro stations
Coverage: 6 lines, 85 stations
Services: Supply, Installation, Commissioning, Maintenance
Installation & Commissioning
Professional Installation by SAMS
Design Services, Installation, Commissioning, and Training provided by certified and factory-trained professionals in full compliance with local codes.
Maintenance & Support
Annual Maintenance
Visual inspection, functional tests, and pressure monitoring.
Typical service frequency: Once per year
24/7 Emergency Support
Emergency response team, spare parts inventory, on-site cylinder recharge, system restoration services.
System Recharge
Typical recharge time: 1–2 hours
Technical Specifications
| Item | Specification |
|---|---|
| Detection Tube Material | Proprietary polymer blend |
| Tube Pressure | 15 bar (217 psi) |
| Activation Temperature | 120°C ± 5°C |
| Detection Tube Service Life | 10+ years |
| Operating Temperature Range | -40°C to +120°C |

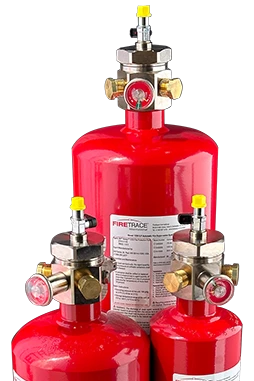

| Cylinder Sizes | 2 to 200 lbs |
| Valve Actuation | Pneumatic / Pneumatic-Electric |
Why Choose SAMS for Firetrace?
Exclusive authorized partner, extensive experience, expert team, full-service capability, and guaranteed compliance.
